Color codes:



Color Plate 1: Pure gases / gas mixtures for industrial use
Color Plate 2: Pure gases / gas mixtures for medical use and inhalation
Color Plate 3: General identification rules
Colormap: Standart RAL colors
Precautionary label (GGVS / GGVE / ADR)
Important information an explanations











 Color Plate 1: Pure gases / gas mixtures for industrial use

OLD (predominantly state)

NEW (according to DIN EN 1089-3)

Acetylene:

yellow maroon

yellow or

black

maroon, yellow

or black

Argon:

gray dark green

gray

gray or

dark green

Compressed air:

gray shiny green

gray

gray

Mixture of argon / carbon dioxide:

gray shiny green

gray

gray

Mixture of nitrogen / hydrogen (Formiergas):

red red

red or

dark green

gray

Helium:

gray brown

gray

gray

Carbon dioxide:

gray gray

gray

gray

Oxygen technical:

blue white

blue

blue or gray

Nitrogen:

dark green black

dark green

dark green, gray

or black

Hydrogen:

red red

red

red

Xenon, Krypton, Neon:

gray shiny green

gray or

black

gray or

shiny green

 Color Plate 2: Pure gases / gas mixtures for medical use an inhalation

OLD (predominantly state)

NEW (according to DIN EN 1089-3)

Medical nitrous oxide:

gray or white blue

gray

white

Mixture of helium / oxygen:

blue

white

brown

blue

white

Mixture of oxygen / nitrous oxide:

blue

white

blue

blue

white

Mixture of oxygen / carbon dioxide:

blue

white

gray

blue

white

Medical carbon dioxide:

gray or white gray

gray

white

Air (synthetic air):

blue or

black

white

black

blue

white

Medical oxygen:

blue white

blue

white







 Color Plate 3: General identification rules, if not already specified above

Color:

Features: Examples:
green inert

shielding gases for welding applications, gas mixtures

blue oxidizing

Mixtures of oxygen,

nitrous oxide mixtures

red combustible

Methane, ethylene,

nitrogen / hydrogen mixture

yellow toxic and / or corrosive

Ammoniak, chlorine, Arsine,

fluorine, carbon monoxide,

nitrogen oxide, sulfur dioxide







 Colormap: Standart RAL colors


Color:

RAL number: RAL designation:
yellow 1018 zinc yellow
red 3000 flame red
maroon 3009 oxide red
blue 5010 gentain blue
light blue 5012 light blue
dark green 6001 emerald green
shiny green 6018 yellow green
gray 7037 dusty gray
brown 8008 olive brown
black 9005 jet black
white 9010 pure white

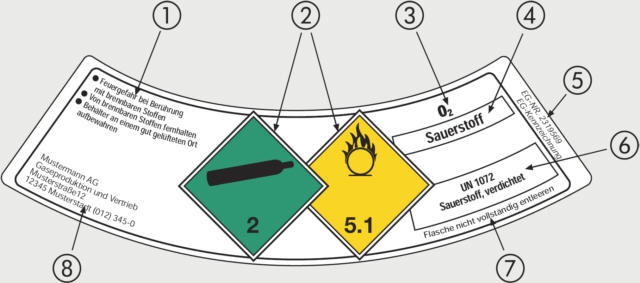

 Precautionary label (GGVS / GGVE / ADR)



1 Risk and Safety Phrases

5

EG number for single substances or the word "gas mixture"

2 Labels

Full name for gas (GGVS / ADR)

3

Composition of the gas or the

gas mixture

Manufacture's note
4 Product description from manufactur

Name, address and telephone number from the manufacture







 Important information and explanations



Implementation of European standard DIN EN 1089-3 "color code"

of gas cylinders in Germany



The Euro standard DIN EN 1089-3 was published in July 1997.

Of specific national conditions, in Germany the standard have to applied by 1 July 2006



By marking the new color coding with the capital letter "N" on the cylinder shoulder

and through the various valve ports to DIN 477 for various types of gas mix-ups

confusion are virtually eliminated.



The possible confusion between the technical and medical oxygen in the transition phase

is offset by the change order





Important Note:



The only mandatory labeling of gas content is done on the dangerous goods label.

In addition, the gas content is determined by the corresponding valve.



The color coding is used as additional information about the properties of gases

(flammable, oxidizing, toxic, aso.). It is already apparent when the dangerous goods label

still not readable due to a great distance.
